Introducing: Wind Spotter

As wind blows over the surface of the ocean it creates small ripples that grow into larger waves over time. It is not an exaggeration to say that virtually all ocean waves–from choppy storm waves to smooth swells–ultimately originate from the interaction between wind and ocean surface. As a consequence, there is typically a strong correlation between local winds and wave conditions. Harald Sverdrup and Walter Munk* were the first to utilize this correlation to predict the wave height given wind speed using empirical relations. One of the first and most dramatic uses of their methodology was the prediction of wave conditions during D-Day: the Allied invasion of France in WW2. Their procedures were used into the 1970s to forecast wave conditions around the globe, and are still used in modified form to this day for preliminary engineering calculations.

Given wind speed and direction we can estimate the magnitude of the resultant waves. This suggests that the inverse may also be true: given wave conditions we can estimate the wind. We will show that with a modern understanding of wave and wind interaction, it is in fact possible to accurately estimate local winds from wave buoy measurements.

How waves relate to wind:

Imagine a large weather system (order 100 km) that quickly grows in intensity over a few hours to reach a peak wind. Initially, only small ripples are generated, but as more energy is transferred from the atmosphere into the water the waves grow larger and longer. Such wind-generated waves consist of many different wave components, each with their own period and direction.

To describe this seemingly chaotic motion we typically consider the energy density spectrum of the wave field, which describes how energy is distributed over different frequencies (or wave periods). The spectral peaks identify the dominant frequencies, and the width of the spectrum relates to how irregular (or “choppy”) the surface looks. The area under the spectrum relates to total energy and wave height (more energy implies higher waves). Typically most energy (70%, say) is contained near the spectral peak, and energies quickly drop of as frequency increases (shorter waves). Further, as the waves grow larger the peak of the spectrum moves to lower frequencies due to nonlinear interactions that redistribute energy within the spectrum.

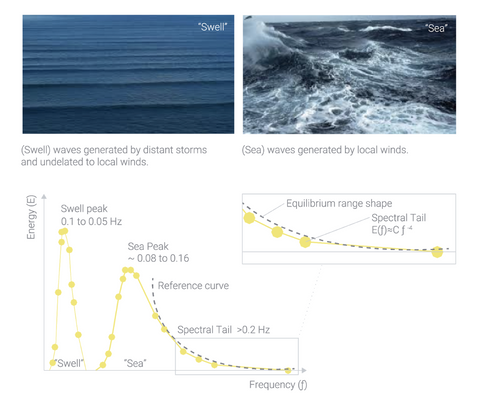

Fig 1

Figure 1: Ocean wave conditions are often best described by the energy spectrum. The spectrum describes the distribution of energy over waves with different frequencies, and different wave systems have different spectral signatures. Swell spectra are often narrower and of lower frequency, whereas wind-generated waves have broad spectral shape with more energy at high frequencies. The region beyond the peak of the spectrum is referred to as the tail, and if the waves are in equilibrium, it takes on a characteristic shape.

With an increasingly energetic sea, wave breaking - referred to as whitecapping -  becomes increasingly more frequent and eventually the energy transfer from wind to waves is balanced by energy dissipation from whitecapping. In this situation the wavefield is fully developed and in balance with the local forcing winds. The limiting wave height and wave period for a given wind speed associated with fully developed conditions were first estimated during pioneering experiments by Willard Pierson and Lionel Moskowitz (1964). Not only did they discover that wave height achieves a maximum, they also found that the shape of the spectrum stabilizes due to the interplay between generation by wind, dissipation by breaking, and nonlinear interactions. This shape became known as the Pierson and Moskowitz spectrum.

Whether equilibrium truly exists, especially at high wind speeds, is still a matter of scientific debate, but the basic notion -- that wave conditions depend on wind speed -- is well established. More specifically, Owen Phillips argued that in the tail of the spectrum (high frequencies) a balance is quickly formed between the three dominant processes:

energy input (wind) + dissipation (white-capping) + nonlinear interactions = 0

Phillips posed that all three processes scale with the frequency (as f-4) and predicted that the spectral shape should have the form


Where C is a constant that depends on wind friction velocity, which in turn depends on wind speed. Because this form only holds when all three processes are in equilibrium, Phillips referred to this region of the spectrum as the equilibrium range. Scientific observations of combined wind and wave observations (e.g. Thomson et al., 2013) have confirmed that the Phillips model adequately predicts the wave spectrum in the equilibrium range, which led the researchers in that paper to conjecture (paraphrased): “...wind velocity u could be determined from wave energy spectra alone”. We take this suggestion seriously.

Predicting wind from waves

Spotter wave buoys give accurate real-time observations of the wave spectrum. The Phillips theory suggests that if we determine the equilibrium range of the spectrum we should be able to estimate the coefficient C, and as a consequence wind speed. Further, since the direction of wind and the waves it generates are aligned, the direction of the waves in this range can be used to estimate the wind direction. To test if this would work in practice we moored a Spotter next to a NOAA weather station 10 miles west of San Francisco (Figure 3). The Spotter was deployed in early October 2018, and the results from the experiment have thus far exceeded our expectations (Fig. 3 and Fig.4)! Similar comparisons at other locations and times have yielded comparable performance. We are further investigating the limits of our method using decades of co-located observations of wind and waves from the NOAA National Data Buoy Center network ( In particular, estimates may be less accurate if the wind changes rapidly in strength or direction, since it takes time for the waves to adapt. Further, for offshore directed winds, distance from the nearby coast may be too short for waves to fully develop (fetch limited growth).

That said, conditions at our main test-site have been quite varied, including periods with rapidly changing and offshore directed winds (wind was offshore directed 30% of the time, Fig. 5), and preliminary results have been excellent throughout. In fact, results are so encouraging that we decided to include the algorithm in our 1.6.0 Spotter firmware release, which turns any Spotter into a wind observer!

Fig 2

FIgure 2: To determine the accuracy of wind estimates derived from wave observations a Spotter wave buoy was moored nearby an oceanic NOAA National Data Buoy Center (NDBC) weather station (Buoy 46026) which directly observes wind strength and direction.

Fig 3

Figure 3: Wind speed estimated by Spotter from observed waves compared with direct observations from a close-by (under 1 km) NOAA weather station (46026).

Fig 4

Figure 4: During testing North-westerly winds dominated and wind was onshore for approximately 70% of the time. The distribution of wind directions derived from Spotter wave data is very similar.


*Walter Munk became a legendary oceanographer, sometimes referred to as the “Einstein of the Ocean”, who would continue researching the ocean throughout his life until recently passing away at the age of 101 (see )

The Spotter Innovation Challenge

The Spotter Innovation Challenge

Spoondrift opens the Spotter Innovation Challenge! We are interested in your research ideas and innovative new applications for Spotter. And to stimulate some creativity, we make up to 2 Spotters available for a maximum of 6 months to use in innovative projects. Graduate students are highly encouraged to apply!

Check here for more details and send in your ideas to Pieter Smit ( by June 30, 2018.

We look forward to hearing what you want to do with your Spotter!

Mooring design guidelines for Spotter

Mooring design guidelines for Spotter

Spotter is designed to be used either free-drifting or anchored to the seafloor. If you are planning to anchor Spotter to the seafloor, you need to design and build a mooring. To help you with that we've pulled together some guidelines, on how you can build a lightweight and low-cost mooring solution that works with a lightweight buoy like Spotter.

These guidelines are based on our experiences, and with help and input from users and testers so far. No doubt that there is lots of room for refinement and improvement and we look forward to hearing your experiences, experiments, and ideas. We will keep updating the mooring design guidelines based on your input and will continue to share them back to the community.
